Product description
Modern MTB Design

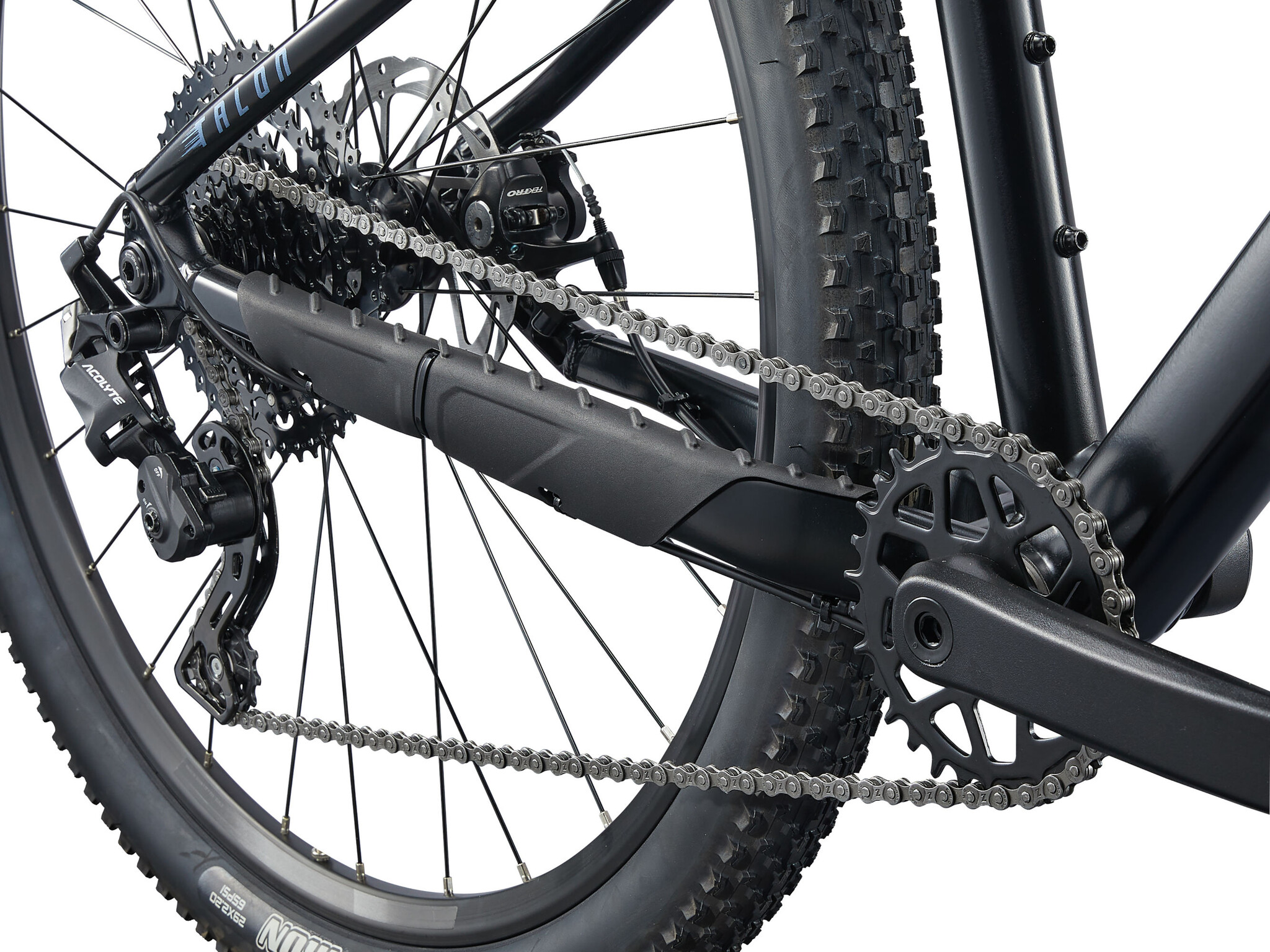

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
izes | 27.5: XS, S 29: S, M, L, XL, XXL |
Colour | Black, Radiant Orange |
Frame | ALUXX-grade aluminum |
Fork | SR Suntour XCE, QR, steel steerer XS, S: 80mm travel (27.5) S, M, L, XL, XXL:100mm travel (29) |
Shock | N/A |
Handlebar | Giant Connect Trail, 31.8mm |
Grips | Giant Sole-O |
Stem | Giant Sport, 7-degree |
Seatpost | Giant Sport, 30.9 |
Saddle | Giant ErgoContact Trail |
Pedals | platform |
Shifters | microSHIFT Acolyte 1x8 |
Front Der. | N/A |
Rear Der. | microSHIFT Acolyte, RD-M5185M with clutch |
Brakes | Tektro TKB-172, mechanical [F]160mm, [R]160mm rotors |
Brake Levers | Tektro RS360A |
Cassette | microSHIFT Acolyte, 8-speed, 12x46 |
Chain | KMC 8.3 |
Crankset | ProWheel, [27.5] 32t, [29] 30t, 52.5mm chainline 32t |
Bottom Bracket | cartridge |
Rims | Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW |
Hubs | alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle |
Spokes | stainless |
Tires | Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, 60 TPI, wire bead |
Extras | 2.4" max tire size, max chainring 32t |
Reviews
Related articles
Recent articles

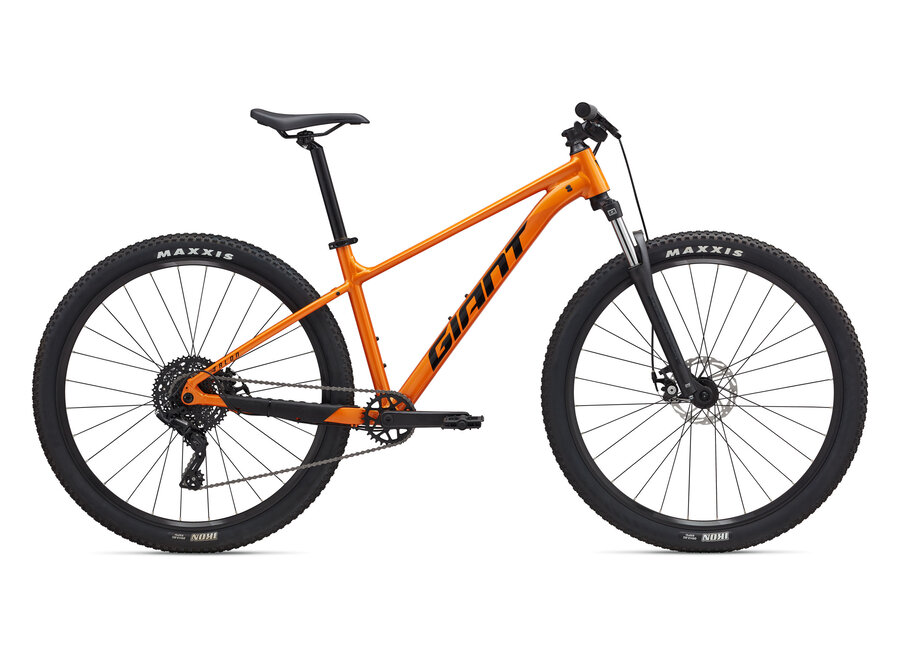

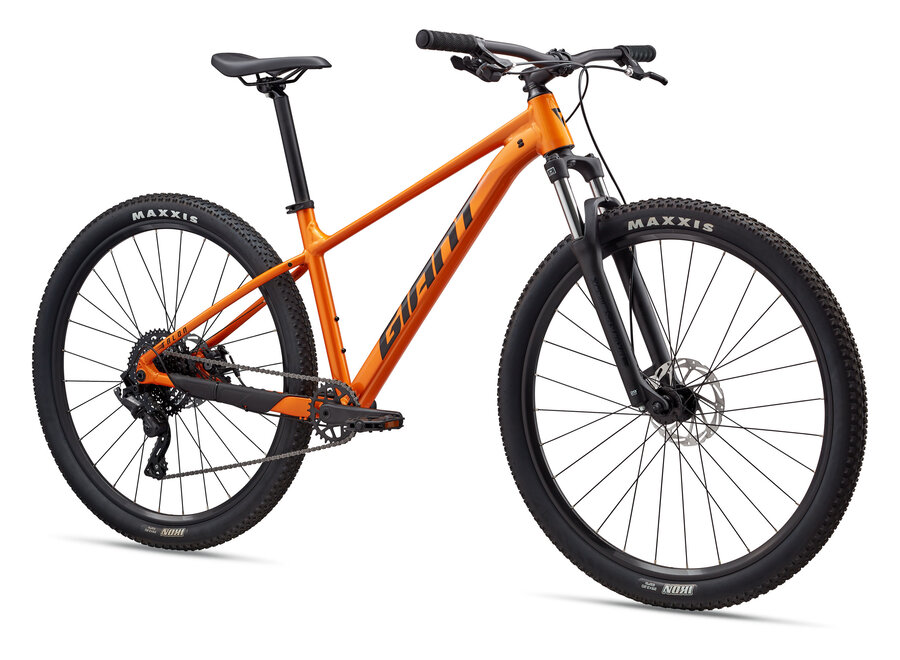

Giant Talon 4 - 27.5
